SCE Hardware Configuration
SCE Enclosure and Interface Card Configuration

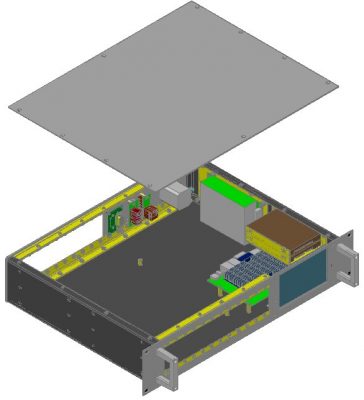

SCE basic hardware
All SCE systems include the following parts:
- Modular 19’’ 2U Enclosure
- Embedded PC Advantech MIO-5250D-S8A1E with Intel Atom D2550 dual core, 1.86GHz
- LCD TFT 800×480
- Mini PCIe Board PCIEM-15-IO 100801A2 with EP4CGX15 fpga and 53 usable I/O
- 160 Watt ATX Power Supply
- 2xSSD 16 Mbytes Hard Disk
- Seven Embedded Operating System (32 bits)
- Mini PCIe Drivers
- All Internal Cables (Power and I/O)
- Filtered 220V Power Entry

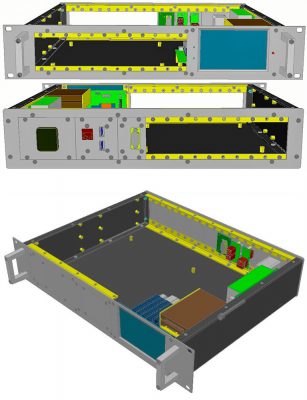

121016A1 Smart Customizable Equipment
Basic Version
The SCE-ATOM-2G-15K Basic Version, P.N. 121016A1, is the version that allows the maximum flexibility at minimum cost.
Front Panel: On the front panel there is room for 12 modules where any modular panels can be can be hosted to hold the equipment I/O connectors
Rear Panel: On the rear panel there is room for 19 modules. In the basic version 9 of them are used to host:
- 071024-52A3: 4 Modules panel with Power Entry SCHURTER DC12.2102.101
- 071024-53A7: 3 Modules panel preformed to host 2xUSB type A and 1xRJ45 connectors equipped with one 071020A1 RJ45 connector carrier and 121022A1 Dual USB connector carrier
- 071024-56A4: 2 Modules panel preformed to host a VGA connector and 130110A1 DB15 connector Carrier.
10 Modules remain available to the user application.
Buy Online
- 121016A1, with enclosure, front and rear panel partial empty.
- SCE Accessories, front/rear panels, transition boards.

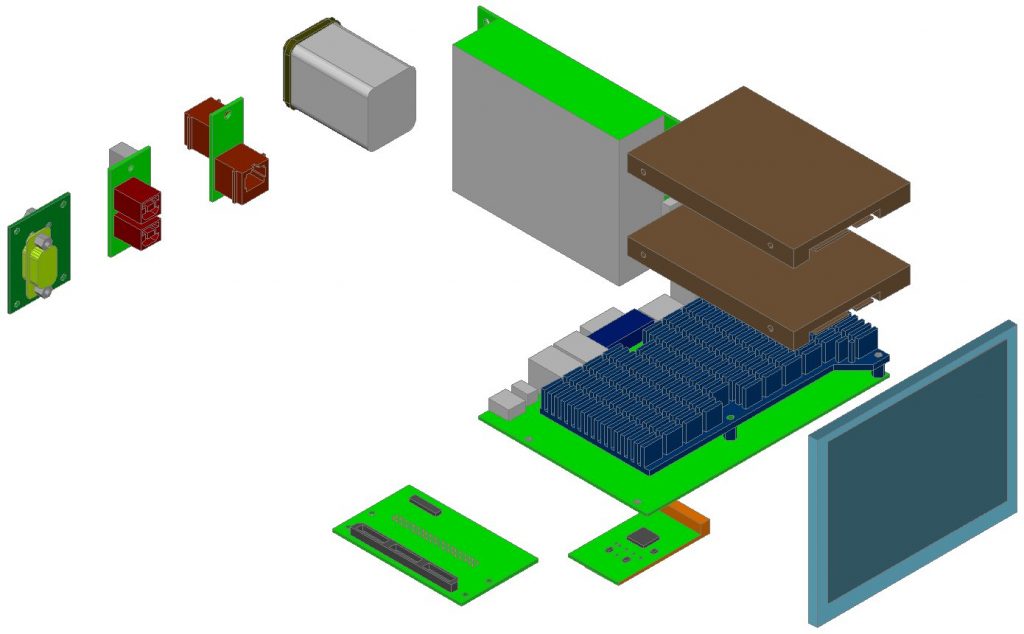

121016A2 Naked Smart Customizable Equipment Naked
The SCE-ATOM-2G-15K-NK is an SCE Kit in Naked Version, available to make users able to pick the SCE hardware architecture and put it in a customer enclosure.
The 5″ 4:3 LCD forces the use of an enclosure with a minimum height of 3U.
The Kit includes:
- Embedded PC Advantech MIO-5250D-S8A1E with Intel Atom D2550 dual core, 1.86GHz
- Display 5.7″ VGA LED (*1) with resistive touch screen (IDK-057R-40VGI1)
- 100801A2 Mini PCIe Board PCIEM-15-IO with EP4CGX15 Altera Fpga, 53 usable I/O
- Mini PCIe Drivers
- Mini PCIe ALL I/O configuration File (Sof and QSYS source)
- 160 Watt ATX Power Supply
- 2xSSD 16 Mbytes Hard Disk
- Seven Embedded Operating System (32 bits)
- All Internal Cables (Power and I/O)
- Power Entry SCHURTER DC12.2102.101
- 071020A1 RJ45 connector carrier
- 121022A1 Dual USB connector carrier
- 130110A1 DB15 VGA connector carrier
(*1) Different screen sizes, up to 19″, with more resolution, up to 1280×1024, can be supplied.
More fpga boards, equipped with HSMC connector, can be integrated in the system, they shall be connected to the SCE using their HSMC and the 130516A1, HSMC adapter board, through a Samtec’s FFSD Cable, to the I/O connectors of the Mini PCIe board
Buy Online
-
121016A2, naked, without enclosure.
-
SCE Accessories, front/rear panels, transition boards.

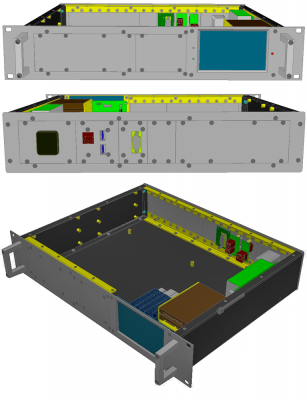

121016A3 Smart Customizable Equipment
The Version SCE-ATOM-2G-15K-FF, P.N. 121016A3, supplies all in one that You need to make yours equipment without buy any other accessories. The frontal and rear panel are filled with with not preformed modular panels, to allow you to perform any personalization that need. Personalization can be done also by GEB using customer drawing.
Front Panel: On the front panel there is room for 12 modules filled with the following customizable panels:

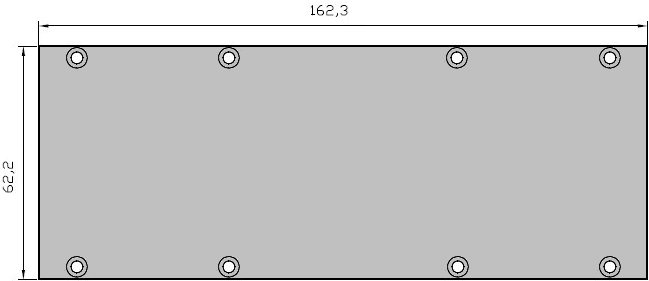

- 071024-51A1: 8 Modules panel (Empty, not preformed)

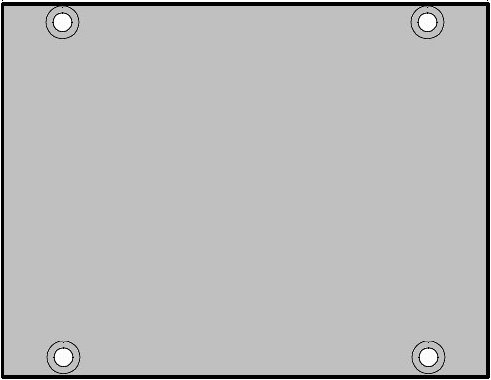

- 071024-52A1: 4 Modules panel (Empty, not preformed)
Rear Panel: On the rear panel there is room for 19 modules. Such as in the basic version, 9 of them are used to host:
- 071024-52A3: 4 Modules panel with Power Entry SCHURTER DC12.2102.101
- 071024-53A7: 3 Modules panel preformed to host 2xUSB type A and 1xRJ45 connectors equipped with one 071020A1 RJ45 connector carrier and 121022A1 Dual USB connector carrier
- 071024-56A4: 2 Modules panel preformed to host a VGA connector and 130110A1 DB15 connector Carrier.
The remaining 10 modules are filled with the following customizable panels:
- 071024-51A1: 8 Modules panel (Empty, not preformed)
- 071024-56A1: 2 Modules panel (Empty, not preformed)
Buy Online
- 121016A3, with enclosure, front and rear panel partial empty.
- SCE Accessories, front/rear panels, transition boards.
