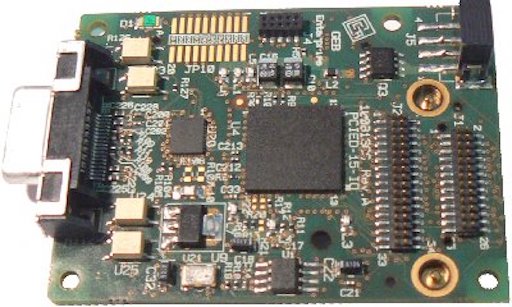

Cyclone4GX PCIe DownStream

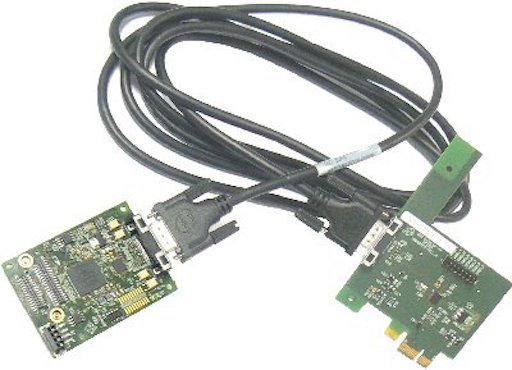

This product allows to extending the host PCI Express bus through a high-speed cable. Using a PCIe compliant cable, the PCI Express bus can be extended up to seven meters from the host CPU.

PCI Express on cable is the first architecture supporting high-end embedded applications, it is a PCI and PCIe compatible expansion and extension cable. PCI Express officially abbreviated as PCIe, is a computer expansion standard card  designed to replace the older PCI, PCI-X, and AGP standards.  PCI Express standard has been developed by PCI-SIG group.

Transmitting the host bus over copper cables opens a new world in the embedded design area. The PCIe cabling solution allows a system configuration having a high-end computing core in a cooled area that is hosting an embedded and remote I/O subsystems, with different thermal environment. The host and I/O system may have different form factors, specifically suited for the environmental or performance requirements of each sub-system. For example, a high-end, dual Intel Xeon class host system provides the user with the computing power for an and a high-speed data link to a high-end embedded I/O subsystem based on MicroTCA, PC/104, 3U CompactPCI Express, or proprietary form factor.

Features:

• Downstream PCI Express on Cable Interface
• Up to 230Mbytes/sec transfer rate in burst (DMA) full duplex read and write access
• Up to 10 Mbytes/sec transfer rate in single random read/write access
• Up to 150Mbytes/sec transfer rate in burst (DMA) half duplex read or write access
• 53 LVTTL 3V3 digital I/O user channels, each one with independent sense, drive, bi-directional, and tri-state capabilities
• 2 User LVTTL output clocks (1 output with dedicated PLL)
• 1 User LVTTL input clocks with dedicated PLL
• Single 3V3 Power Supply
• High density connector , 1x Samtech QSH-030-01-L-DA-RT1 on bottom side
• Medium density connectors , 2x Samtech FTS-1XX-02-F-DV on top side
• Peripheral to host wake up support
• Remote host to peripheral power on support
• Hot insertion support
• User resources available on FPGA:
  • EP4CGX15BF14C7N: 14400LE, 540Kbits RAM, 3xPLL
  • EP4CGX30BF14C6N: 29440LE, 1080Kbits RAM, 4xPLLs, 80xMult.18X18
• Boot device
• Power on monitor and reset circuitry
• One test access port (TAP) to control the I/O channels
• On board crystal oscillator
• Boundary-scan, JTAG/IEEE 1149.1 standard compatible
• Board size: 50×67 mm.
• Optional 2MBytes add-on module
